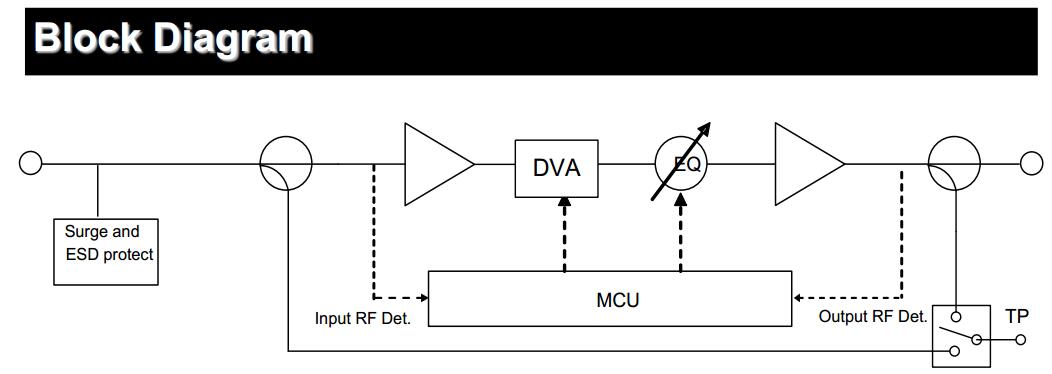

Description
The GSDT-STA provides amplification of forward path RF signals in headend or hub locations. It uses a RF amplifier integrated circuit to provide high linearity, low-noise, and low distortions. It can adjust the integrated attenuator to obtain specific RF output levels, and it can easily compensate high-frequency roll-off due to headend cabling with the integrated slope control.
Specifications
1. 0dB attenuator setting, and 0dB slope setting
2. Maximum distortions at 40dBmV output, NTSC 77 channels loading+75 channels 256 QAM
Features
■ Hot swap plug-in module
■ Single output port with up to 30 dB of gain
■ Slope adjustment range from 0dB to +9dB
■ 47 to 1003MHz RF output pass-band
■ High linearity, low-noise and low distortions
■ Front panel test point for RF input and output
■ Local and remote software control

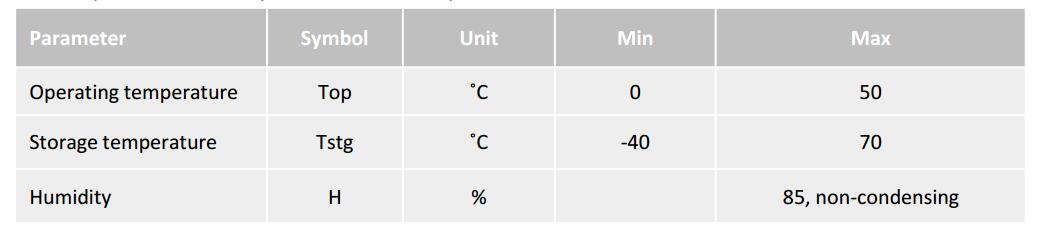

Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.
